SPEECHITOUCH SUPERGLASS 2 - 86" View larger

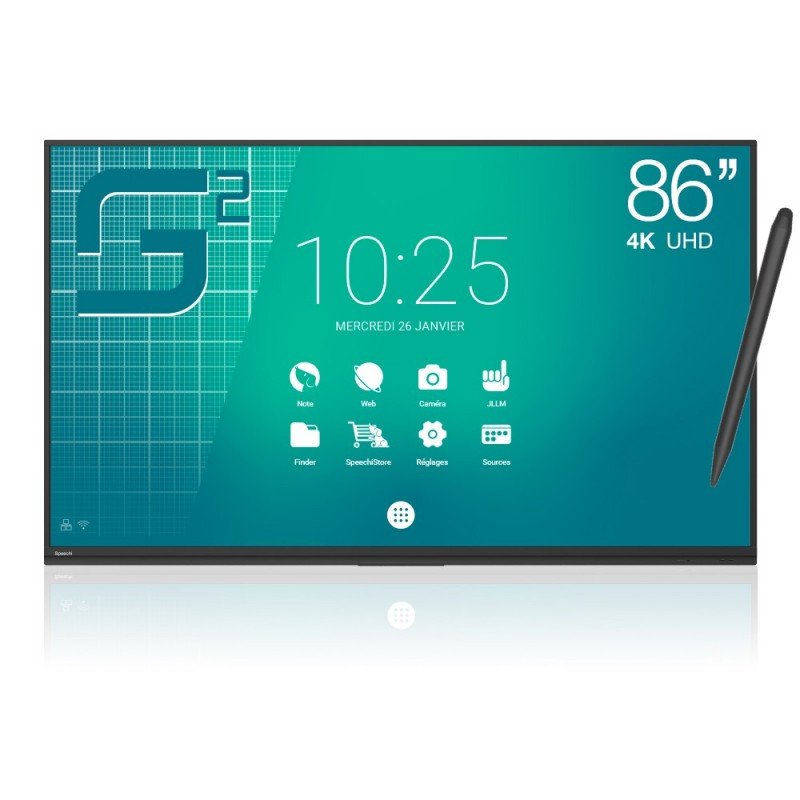

SPEECHITOUCH SUPERGLASS 2 - 86"

ST-86-AND-UHD-HP2

Contactez-nous!

Devis (pdf)

Brightness350 cd/m²
Available sizes65", 75", 86"
Display resolution4K - UHD (3840 x 2160)
Android versionAndroid 9
Android Resolution4K - UHD (3840 x 2160)
CPUA73 Quadcore
GPUG52MC2
ROM (internal SSD hard drive)32 Go
Loudspeakers2 x 16W

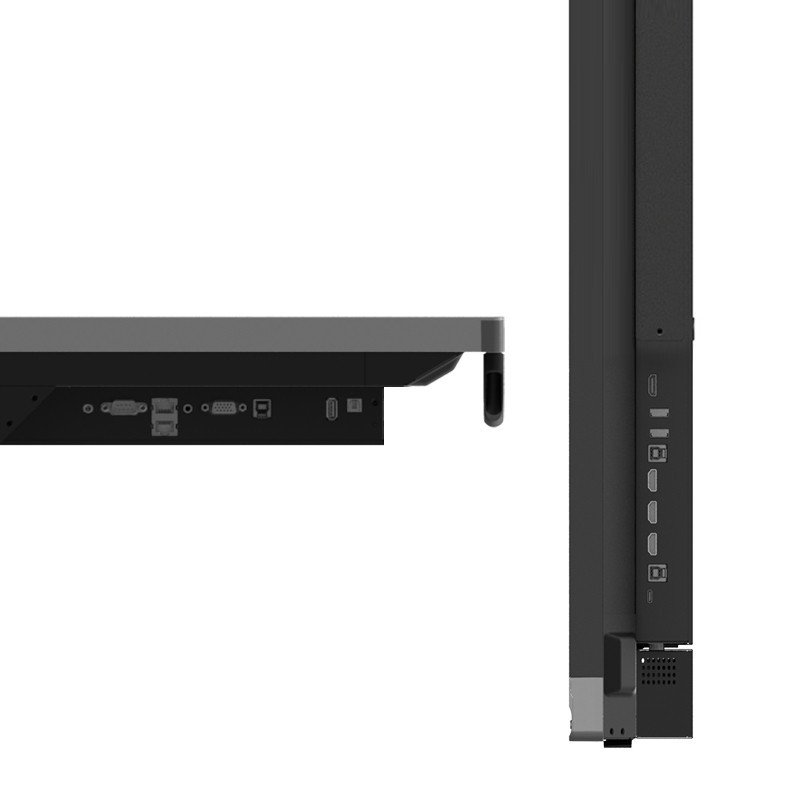

Connectics1 x RS-232, 1 x Audio in, 1x Audio out, 2 x Touch 3.0, 1 VGA in, 2 x RJ45 (IN&OUT), 3 x HDMI in, 1 x HDMI out (4K), 1 x USB 2.0, 4 x USB 3.0, 1 x SPDIF, 1 x USB Type-C, 1 SPDIF
Warranty3 ans retour atelier
RAM4 Go
BluetoothModule WiFi/BT disponible en option
WifiModule WiFi/BT disponible en option
Touch TechnologyInfrarouge Haute Précision 2nd Génération
Number of simultaneous hits20 points de touch
Package dimensions (W) x (H) x (D)2110×225×1283mm
Weight with packaging80.7 kg
Protective glass3mm
Product dimensions without packaging (W x H x D)1957×1159.8×86.3mm
Net weight (without packaging)65.75 kg
Screen diagonal86"
OPS PCSLOT OPS 120 pins
Viewing angle179°
Display ratio16 : 9
Precision- de 1mm
Response time6 ms
Display operating systemAndroid 9
Compatible operating systems (screen mirroring)Windows, Mac, Linux
Supported Operating Systems (OS)Windows, Mac, Linux
Touch functionalitySuperglass 2nd Génération
Stylus2 stylets passifs haute précision (2 pointes différentes)
VESA (mm / mm)800×600mm
Consumption600W
Capteur de luminositéOui
Durée de vie moyenne de la dalle (MTBF)50 000 Heures
