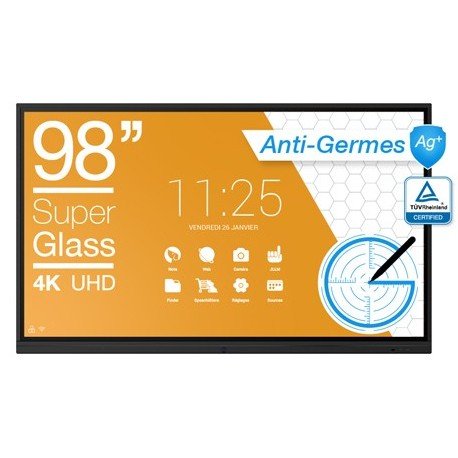

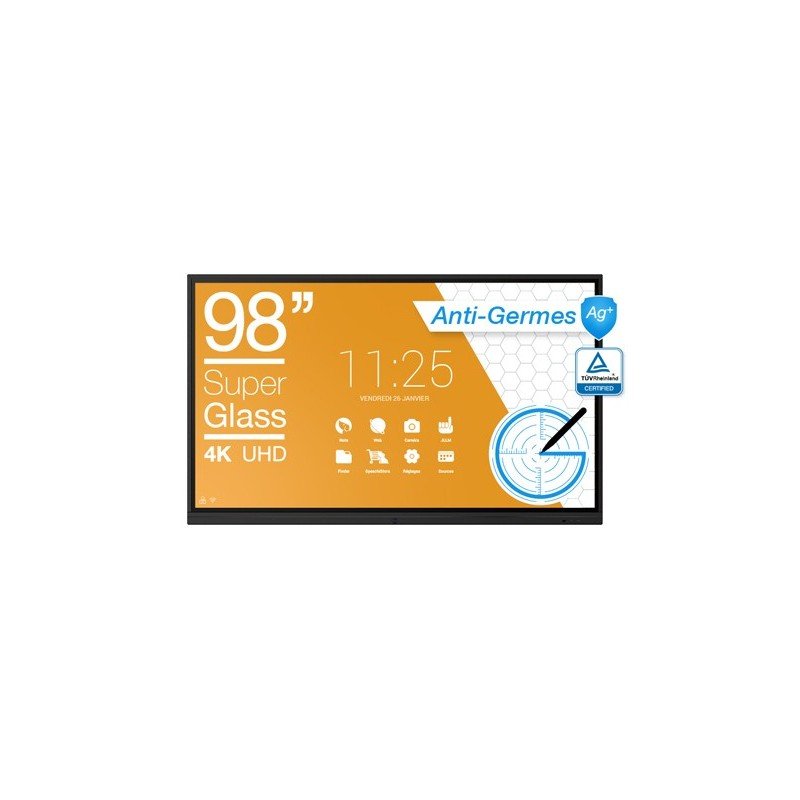

High Precision SuperGlass Germ-Resistant Android Interactive Touch Screen SpeechiTouch UHD - 98"

ST-98-UHD-AND-HP-005-AG

SpeechiTouch 98-inch interactive touch screen, high-precision infrared technology, 4K UHD, SuperGlassTM process, Android 8

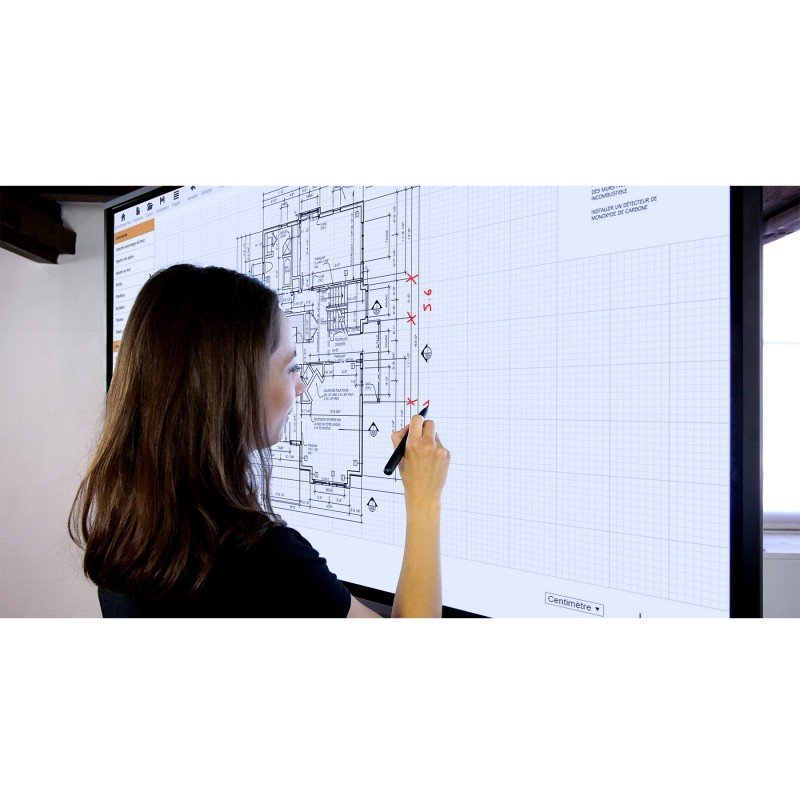

SuperGlass technology applied to the SpeechiTouch interactive display gives the user the impression of writing on graph paper.

Giant in size and capacity, the 98" SuperGlass touchscreen is popular in auditoriums, large meeting and conference rooms.

Its ease of use and autonomy combined with advanced technical capabilities (20 simultaneous touch points, perfect 4K resolution, Android 8 core, powerful connectivity, etc.) make the 98" SpeechiTouch SuperGlass interactive screen a professional must have.

More details

A giant interactive screen powered by a powerful Android heart

After a very quick start, the Android core of the SuperGlass interactive screen will understand your every move with precision. It is thanks to this Android core coupled with the precision of SuperGlass technology that the 98" SpeechiTouch interactive screen runs without any latency. Indeed, the power of the Android system allows for ultra-fast data processing.

Even the most complex applications (present or not in our SpeechiStore application store) can run on the giant 98" interactive touch screen.

4K Android interface on your interactive screen.

Thanks to the SuperGlass process, the interactive screen is equipped with ultra-precise touch-sensing technology. The effectiveness of this precision feature is further enhanced by the 4K resolution of the Android 8 interface. All SpeechiTouch interactive displays in the High Precision range feature this Android 4K interface (comprising 3840x2160 pixels).

Little extra : this interface runs on Android 8. This gives the giant touch screen the latest security updates, an optimized interface and other features that you will discover intuitively when using it.

SuperGlass™ process

High-precision detection

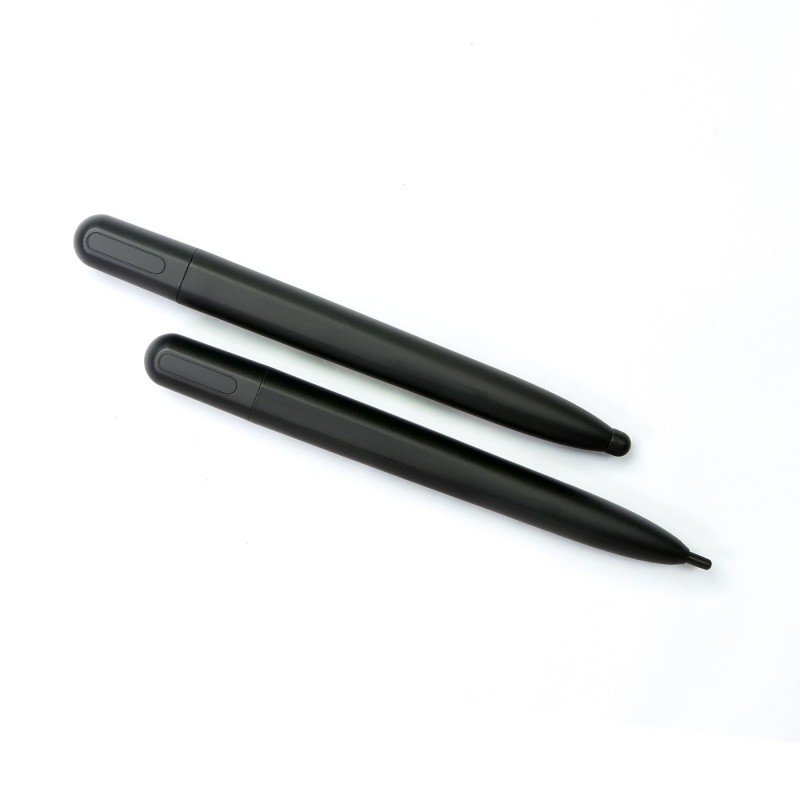

This is the most precise infrared technology on the market: you can write with a toothpick on the resistant slab of the interactive screen. As we often say, the precision is similar to that required by graph paper. To take advantage of this writing flexibility, the interactive SuperGlass display from SpeechiTouch is equipped with 2 pens with different mine sizes. One of its styli has a lead of less than 3mm. These two styli are differentiated and allow to share the work done with two different writing colours.

Comfort and fluidity combined for memorable use

Unlike other infrared technologies, the SuperGlass touch screen does not feel like writing on a glass panel. Indeed, the glass of the giant interactive screen is treated matt and anti-reflective. Its lack of roughness (reduced by 20%) is such that one has the impression of writing directly on the touch screen, without protective glass.

Optical bonding minimizes

The "optical bonding" sensation is the user's observation that a gap exists between the drawing with the stylus and the place where the drawing is made on the interactive screen. Where this gap is on average 4mm on traditional interactive screens, it is only 0.5mm on the SuperGlass interactive screen.

Elegant yet rugged giant touch screen

SpeechiTouch touchscreens are designed with an aluminum frame and a tempered glass panel that make them strong and ready for everyday use. All of this is maintenance-free and gives the interactive displays an exceptional lifespan of approximately 30 years.

Although the High Precision technology eliminates unnecessary thickness in the interactive screen frame, it does not make it any less resistant and allows it to gain in finesse and elegance thanks to its barely 6 mm thick frame.

Even the 98" touch screen remains elegant despite its impressive size: its total thickness is no more than 9 cm. It will dress up a wall without any aesthetic counterpart.

To each the interactive screen size that corresponds to it

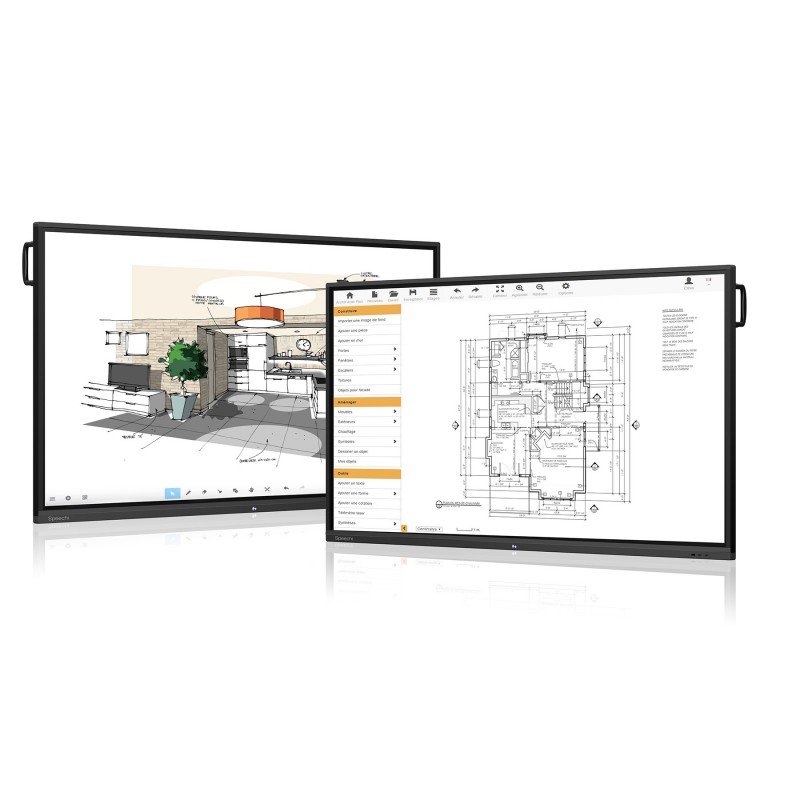

SuperGlass interactive screens are available in 65", 75", 86" and 98". Anyone (professionals, teachers, etc.) will therefore find the interactive screen that suits their needs and environment.

Discover Iolaos, the SpeechiTouch annotation software.

The famous software is suggested to users of all ranges of SpeechiTouch interactive displays. With the Iolaos toolbar, always available regardless of the source, you can click on any side of your screen to annotate all your presentations.

Brightness350 cd/m²
Contrast Ratio4000:1
Available sizes65", 75", 86"
Display resolution4K - UHD (3840 x 2160)
Android versionAndroid 8
Android Resolution4K - UHD (3840 x 2160)
CPUARM Cortex A73 dual core + ARM Cortex A53 dual core
GPUMali G51 Quad core
ROM (internal SSD hard drive)16 Go
Loudspeakers2 x 16W
Connectics1 x RS-232, 1 x Audio in, 1x Audio out, 2 x Touch, 1 VGA in, 1 x Ethernet (LAN), 3 x HDMI in, 1 x HDMI out (4K), 3 x USB 2.0 (of which 2 in front), 3 x USB 3.0, 1 x SPDIF
Warranty3 years return workshop
RAM3 Go
WifiModule WiFi disponible en option
Touch TechnologyHigh Precision Infrared
Number of simultaneous hits20 touch points
Package dimensions (W) x (H) x (D)2483 x 376 x 1493 mm
Weight with packaging139 kg
Protective glass4mm MOHS level 7
Product dimensions without packaging (W x H x D)2245 x 1323 x 91 mm
Net weight (without packaging)102 Kg
Screen diagonal98"
OPS PCSlot available for an OPS PC (not supplied)
Viewing angle179°
Display ratio16 : 9
Precision+/- 1mm
Response time6 ms
Display operating systemAndroid
Compatible operating systems (screen mirroring)Windows, Mac, Linux
Supported Operating Systems (OS)Windows, Mac, Linux
Touch functionalitySuperglass process
Stylus2 high-precision passive styli (2 different tips)
Camera supportSupport plate adapter included. Requires the support plate available here : https://shop.speechi.net/fr/accueil/27994-plaque-support-pour-cameras-accessoire-speechitouch.html

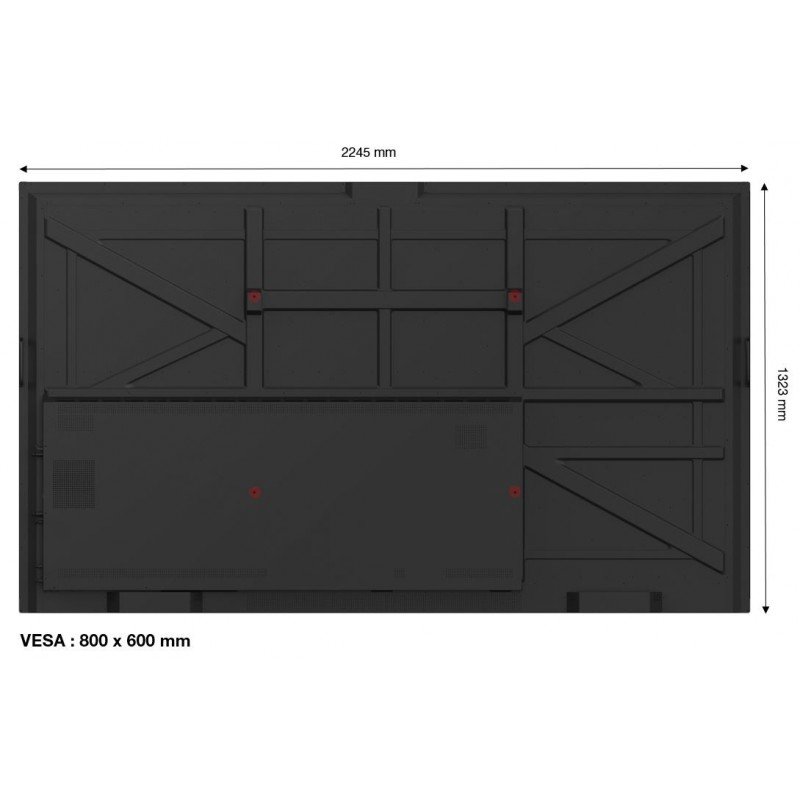

VESA (mm / mm)800 x 600mm
Consumption600W
